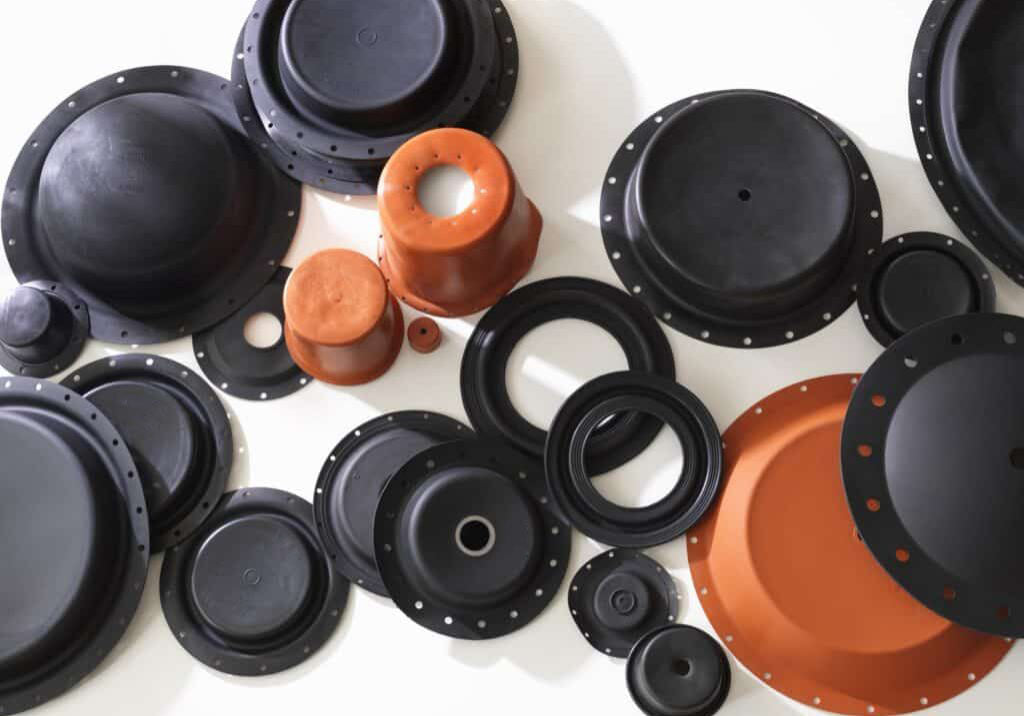

Fabric-Reinforced Rubber Diaphragms
Fusheng Rubber supplies fabric-reinforced rubber diaphragms for sealing and controlled movement applications. Rubber options include NBR, EPDM, FKM, silicone and the other materials listed below. Fabric selection and diaphragm geometry should be reviewed together with the operating media, pressure and movement requirements.
Material:
NR / SBR / NBR / EPDM / FKM / IIR / Silicone / CR
Please contact us regarding the material of the fabric layer.
Hardness:
30 ~ 90 Shore A
Color:
Black / White / For other colors, please contact us.
Material Spec.:
Per ASTM D2000 / SAE J200 Spec.
Other requirements:
Such as: Anti-static / Conductive / Flammability / FDA / REACH / RoHS / California Proposition 65, etc.
(Please contact us)
Packing Method:
Standard packaging. (Small pack is available.)
HS Code: 401693
Questions to Discuss Before Ordering
What information is needed for a diaphragm inquiry?
Provide a drawing, clamping dimensions, required movement or stroke, pressure conditions, contact media, operating temperature, quantity and any cycle-life or test requirements.

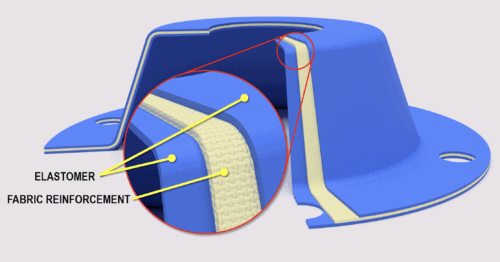

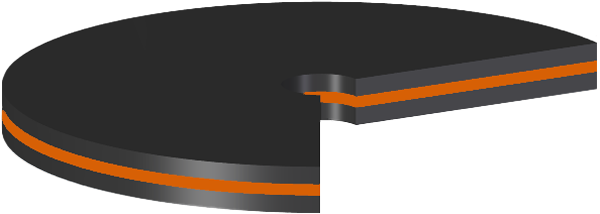

Which fabric reinforcement is available?
Contact Fusheng Rubber to discuss the fabric layer. The reinforcement should be specified for the geometry and operating requirements of your diaphragm.
Can I specify rubber hardness and color?
The listed hardness range is 30–90 Shore A, with black and white options. Ask the team to confirm the compound, hardness and color combination for your application.
